Thymeleaf integration with Spring

Hi in this post I am Integrating Thymeleaf3 with Spring 4.

My System configuration:

Windows 10
Spring Tool Suite
Platform: Eclipse Neon.1 (4.6.1)
java version "1.8.0_131"

To create Thymeleaf Integration with Spring we have to follow these stesp:



1)Create a maven project

2)Select Maven project

3) Select option create a simple project(skip archetype selection)

4) Give group id and artifact id and some extra details and then finish.

After this step our maven project will be created but showing some error.
One error is inside pom.xml

If u hold your mouse on cross sign/error place then u can see this

and the message is:
                             web.xml is missing and <failOnMissingWebXml> is set to true

To avoid this problem we have to add some code in pom.xml (I will show u shortly).

Second thing is not an error but it is showing older version of Deployment Descriptor. We have to change this too.

Now my pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>org.asif.thymeleaf3</groupId>
  <artifactId>ThymeleafIntegration</artifactId>
  <version>0.0.1</version>
  <packaging>war</packaging>
  <name>Thymeleaf3 Integration with Spring4</name>
  <description>In this project I am Integrating Thyemealf3 with Spring4</description>

  <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <jdk.version>1.8</jdk.version>
        <thymeleaf.version>3.0.0.RELEASE</thymeleaf.version>
        <spring.version>4.2.2.RELEASE</spring.version>
        <maven.compiler.version>3.1</maven.compiler.version>
        <maven.war.version>2.6</maven.war.version>
    </properties>

   <!-- To avoid compiler and jre version -->
   <build>
        <finalName>${project.artifactId}</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.tomcat.maven</groupId>
                <artifactId>tomcat7-maven-plugin</artifactId>
                <version>2.2</version>
            </plugin>
            <plugin>
          <groupId>org.apache.maven.plugins</groupId>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>${maven.compiler.version}</version>
          <configuration>
              <source>${jdk.version}</source>
              <target>${jdk.version}</target>
          </configuration>
      </plugin>
      <!-- removing web.xml file error problem -->
      <plugin>
             <groupId>org.apache.maven.plugins</groupId>
             <artifactId>maven-war-plugin</artifactId>
             <version>${maven.war.version}</version>
             <configuration>
                 <failOnMissingWebXml>false</failOnMissingWebXml>
             </configuration>
         </plugin>
        </plugins>
    </build>

<dependencies>
        <!-- Provided dependencies -->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-web-api</artifactId>
            <version>8.0</version>
            <scope>provided</scope>
        </dependency>
        <!-- Compile dependencies -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.thymeleaf</groupId>
            <artifactId>thymeleaf</artifactId>
            <version>${thymeleaf.version}</version>
        </dependency>
        <dependency>
            <groupId>org.thymeleaf</groupId>
            <artifactId>thymeleaf-spring4</artifactId>
            <version>${thymeleaf.version}</version>
        </dependency>
    </dependencies>

</project>


After saving pom.xml you have to upate maven project.
Even after this if you observe deployment descriptor still it is showing old version like this

To change it to latest version we have to close project and then open again.

Now once I closed project and open again then you can see change

You can check that now Deployment descriptor becomes 3.1.

Simply maven update your project.
Now our project is created and having no error.

We will see our coding part now.
In this project for all configurations we are using Java class only, no xml file.

First we are creating ThymeleafConfig class in which we will do configuration of our thymeleaf.
Here is our class

package org.asif.thymeleaf3.config;

import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.ViewResolver;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
import org.thymeleaf.TemplateEngine;
import org.thymeleaf.spring4.SpringTemplateEngine;
import org.thymeleaf.spring4.templateresolver.SpringResourceTemplateResolver;
import org.thymeleaf.spring4.view.ThymeleafViewResolver;
import org.thymeleaf.templatemode.TemplateMode;
import org.thymeleaf.templateresolver.ITemplateResolver;

@Configuration
@EnableWebMvc
@ComponentScan("org.asif.thymeleaf3")
public class ThymeleafConfig  extends WebMvcConfigurerAdapter implements ApplicationContextAware {

    private static final String UTF8 = "UTF-8";

    private ApplicationContext applicationContext;

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) {
        this.applicationContext = applicationContext;
    }

    @Bean
    public ViewResolver viewResolver() {
        ThymeleafViewResolver resolver = new ThymeleafViewResolver();
        resolver.setTemplateEngine(templateEngine());
        resolver.setCharacterEncoding(UTF8);
        return resolver;
    }

    private TemplateEngine templateEngine() {
        SpringTemplateEngine engine = new SpringTemplateEngine();
        engine.setTemplateResolver(templateResolver());
        return engine;
    }

    private ITemplateResolver templateResolver() {
        SpringResourceTemplateResolver resolver = new SpringResourceTemplateResolver();
        resolver.setApplicationContext(applicationContext);
        resolver.setPrefix("/WEB-INF/views/");
        resolver.setSuffix(".html");
        resolver.setTemplateMode(TemplateMode.HTML);
        return resolver;
    }

}

*NOTE: If you change your package name then please don't forget to change @ComponentScan("Here please give your package name")

Even you can see your project in tomcat manager but if you try to access your project it gives you error that path not found.

Please take care of this.

 resolver.setPrefix("/WEB-INF/views/");
This is the place where I have to keep my html pages.

 resolver.setSuffix(".html");

we have to return only name of html page n complete path and extension will be add from here automatically.

Spring web Initializer class

package org.asif.thymeleaf3.config;

import javax.servlet.ServletContext;

import javax.servlet.ServletException;

import javax.servlet.ServletRegistration.Dynamic;

import org.springframework.web.WebApplicationInitializer;

import org.springframework.web.context.support.AnnotationConfigWebApplicationContext;

import org.springframework.web.servlet.DispatcherServlet;

public class SpringWebInitializer implements WebApplicationInitializer {

    @Override

    public void onStartup(ServletContext servletContext) throws ServletException {

        AnnotationConfigWebApplicationContext context = new AnnotationConfigWebApplicationContext();

        context.register(ThymeleafConfig.class);

        context.setServletContext(servletContext);

        // Spring MVC front controller

        Dynamic servlet = servletContext.addServlet("dispatcher", new DispatcherServlet(context));

        servlet.addMapping("/");

        servlet.setLoadOnStartup(1);

    }

}

So our integration is ok now we have to write our controller class.

package org.asif.thymeleaf3.web;

import org.springframework.stereotype.Controller;

import org.springframework.ui.Model;

import org.springframework.web.bind.annotation.RequestMapping;

import org.springframework.web.bind.annotation.RequestMethod;

import org.springframework.web.servlet.ModelAndView;

@Controller

public class HomeController {

@RequestMapping(value = "/", method = RequestMethod.GET)

    public ModelAndView myModelMethod(Model model){

    ModelAndView mav = new ModelAndView("home");

    mav.addObject("myName", "Md Asif Aftab");

    mav.addObject("myEmail", "asifaftab87@gmail.com");

    return mav;

    }

}

This is very simple controller class where I am returning two attribute to html page which I can display in my html page using Thymeleaf tag.

ModelAndView mav = new ModelAndView("home");

Here home is name of my html file -> home.html

Inside

     src->main->webapp

we will create folder WEB-INF, so final path



     src -> main -> webapp -> WEB-INF

We have to create one more folder views

     src -> main -> webapp -> WEB-INF -> views

This path we given in our ThymeleafConfig.templateResolver() - method so we have to follow the same to place our html page.

You can modify this but whatever path you are going to give same path you have to follow to create your html files.

Location of home.html

           src/main/webapp/WEB-INF/views/home.html

home.html

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml" xmlns:th="http://www.thymeleaf.org">

<head>

<meta charset="ISO-8859-1">

<title>Insert title here</title>

</head>

<body>

Name: <span th:text="${myName}" />

<br>

Email: <span th:text="${myEmail}" />

</body>

</html>

Done.

Thanks

Add specific file or project to github

Here I will discuss how to add project in github.


First we have to install gitbash

download url: https://git-scm.com/download/win

Install file by using all default option n press next, next.

Suppose this is my page

url: https://github.com/asifaftab87/java-core

I want to add my project or file to this repository.
For this we have copy download link

Now I want to add First.java file to my repository whose url is:

https://github.com/asifaftab87/java-core.git

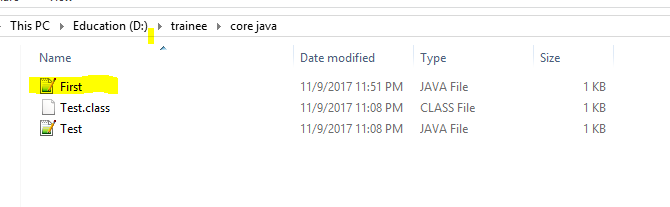

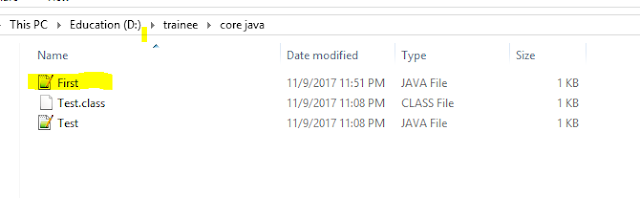

I will go to first my folder which has First.java file

In this folder we will open git bash by right click shown below

once we click on Git Bash Here option then one terminal will open like this

So our git bash terminal is ready to execute our command.

Now we will execute our command to commit our code to github repository.

You can also follow this url, I am always taking help of this page:

URL:  https://help.github.com/articles/adding-an-existing-project-to-github-using-the-command-line/

Initialize the local directory as a Git repository

 git init


Add the files in your new local repository. This stages them for the first commit.

 git add First.java


Commit the files that you've staged in your local repository.

 git commit -m "your message that describe your commit"


In the Command prompt, add the URL for the remote repository where your local repository will be pushed.

 git remote add origin https://github.com/asifaftab87/java-core.git


Push the changes in your local repository to GitHub.

 git push origin master


Once u run git push origin master terminal would ask your githubId/github registered email id  and password.

Once done then your code already committed to your github repository.

git remote add origin remote url

Above command used only when we are adding a file/folder/project to a very newly created repository, e.g. if repository is new and nothing inside repository then we have to use

git remote add origin remote url

else we skip this command.

So to commit file/folder/project in git which is already having other project or old repository then commands are

 git init

 git add First.java

 git commit -m "your message that describe your commit"

 git push origin master
